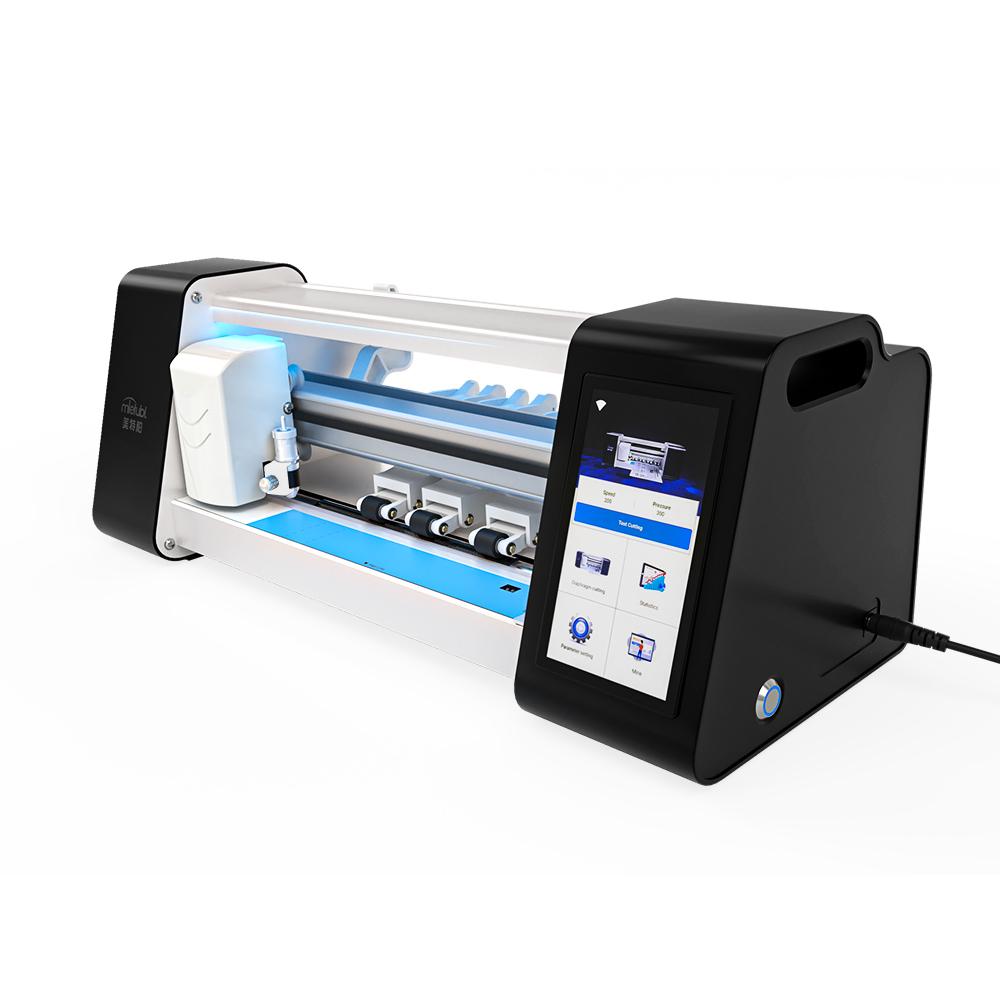

Mietubl screen protector machine is designed to produce custom-sized and shaped screen protectors for a wide range of electronic devices, such as smartphones, tablets, smartwatches, cameras, and more. This machine enables to create screen protectors on-demand, catering to the specific needs of their customers
The screen protector machine comes with a good user-friendly interface, allows users to choose screen protector model from our self-developed cloud system, and it only takes 20 seconds to make the screen protector you need.
The machine supports a variety of screen protector materials, TPU (Thermoplastic Polyurethane), PET (Polyethylene Terephthalate), and other advanced protective films. Users can choose the material that best suits their needs.
4 adjustable wheels and upgraded pressure bars can hold the raw material firmly, and has a larger cutting area, make it able for the machine to cut larger screen protectors, like iPad screen protectors.
One important reason to use the screen protector machine is that you will not need to wait a long time before you get new screen protectors. When the new mobile phone is on sale.
Our technical team keep collecting brand new models every day, and update them to our database in the first time, So that you can grasp business opportunities in the shortest time.
And all upgrades are free, whether it is software or templates.
The built-in cutting data statistics function will be helpful to you. If you want to know which is the most popular mobile phone and optimize your inventory. You can also discover the changes in your sales through daily, weekly, and monthly statistics.
We provide a one-piece service for the screen protector machine, both in terms of technology and raw materials. Our skilled technical colleagues will provide you with all the support from pre-sales to after-sales. Even if you are new to the machine, you can master it quickly.
|Model||MTB-CUT180T screen protector machine|
|Driver||High torque motor, micro-step subdivision drive|
|Screen||5.5 inches, 1920×1080 dpi|
|Maximum feed width||320 mm|
|Maximum cutting width||228 mm|
|Maximum cutting thickness||0.7 mm|
|Pressure||1-999 (digital adjustment)|
|Cutting speed||1-500 (digital adjustment)|
|Repeatability||0.1mm/2 times (200×200 mm)|
|Blade||Carbide steel knife|
|Power adapter||input: 100-240V～50/60HZ, 1.5A; output: 24V/2A|
|Packing size||600 mm×295 mm×310 mm|
Yes, The screen protector machine can cut PET material, but please note that you need to adjust the machine setting and PET material is more likely to wear out the cutting blade.
Yes, we have one-year warranty for our screen protector machine, skilled technicians will provide you with free product consultation services. However, please note that cutting blade and screen protector sheets as consumables are not covered by the machine's warranty.
Making a cutting template is not a simple matter, it needs to use special software and convert it into a file format supported by the machine. In general, you need to hire professional technicians for making your own screen protectors. But for simple screen protectors, you make it through the custom function on the machine, just enter a few parameters such as length, width and diameter.
The right cutting parameters mainly depend on the materials you use. For regular materials, it is recommended to use the following parameters
|Material||Back film||Four layer soft film||Explosion-proof material|
|Blade holder scale||4~5||4~6||7~8|
We provide a variety of cutting materials, such as HD clear, matte, privacy and anti Blu-ray etc. The prices are different according to materials and functions. But either material is cheaper than tempered glass screen protector.
No, the machine is specially developed for cutting flexible screen protector materials like TPU/PET screen protectors, but it is not suitable for cutting glass screen protectors.
By adjusting the scale of the cutter, our screen protector cutter can be used for cutting materials with different thicknesses.
Different from laser cutting machine, our screen protector cutting machine is physical cutting machine,and it will not cause unpleasant gases and pollutants.
There are some certain advantage of our screen protector machine.
1. There is no limit on the cutting times,that means you don't need to pay for each cut;
2. Double motors, strong cutting power;
3. Adjustable cutting pressure and speed that means you can cut materials from different companies on the machine;
4. Feature with a 6-inch HD screen, easy to operate;
5. Self-developed cloud system, timely data update;
6. Through the newly added back film pattern customization function, you can print your own back film pattern;
7. As a source factory for machines and cutting materials, we can provide you with low-price and high-quality products.
No, it's cut with a blade, and unlike laser cutting, it's very safe, noise-free, pollution-free. You can rest assured in some places to use, such as shopping malls, home and so on.
No, the software upgrade is free.New model data updates are also free of charge.
By now we have five type of raw material for the screen protector machine.
1.HD clear films, The HD clear film are one of the most popular films in the market, it provides a high clear watching experience, there is a coating on the surface that keeps it a long-lasting anti-fingerprint ability. All slight scratch will automatically recover.
2 Matte screen protectors
If you are a game lover, you will undoubtedly like this kind of product. The matte screen protector features not reflecting surface. The grooves on the surface can form a unique touch feeling, and it is not easy to leave traces and fingerprints
3.Anti blue-ray films
The anti blue-ray films is perfect for cellphone heavy users, the functional screen protector blocks harmful lights in the 400-430 nm band. And still keep it a high clear picture. The screen protector will relieve visual fatigue in the long term use of cellphone
4 Privacy films
It is very important to protect your personal information from prying eyes when using your mobile phone in public. And the privacy films will do this favor, the privacy films keep a certain visual angle, you can only see the screen from the front, and those sitting next to you can only see the black screen.
5 Anti blue-ray & matte films
The Anti blue-ray & matte films has both characteristics of anti-blue film and matte film and thinner than tempered glass screen protector, and slight scratches can be automatically repaired by itsel.
Yes, in addition to the machine, we also provide various types of screen protector cutting materials, including HD, privacy, matte, Anti-blue ray, explosion-proof and back films with various patterned. All of which have favorable prices. You can order these products according to your needs.
No, our screen protector cutting machine can be used for permanently free and is not bound to any material. You can use materials from any company.
